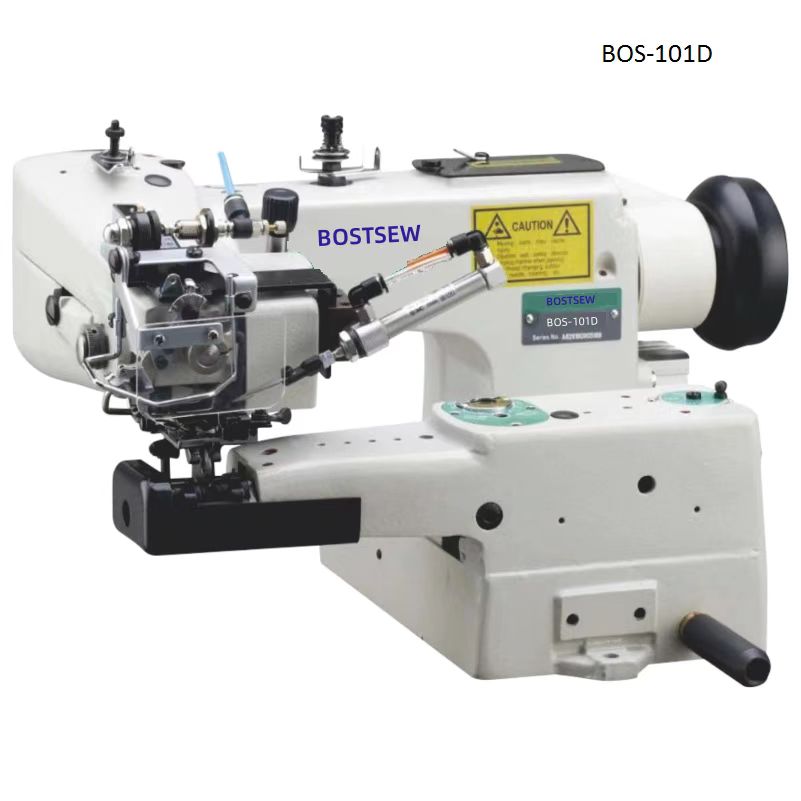

BOS-101D暗缝机

产品特点 ∣Features

1. 厚薄通吃：具有压布可调装置，可适应不同厚度布料。

1. Material widely used: In possession of adjustable press fitting, suitable to do various materials in different thickness.

2. 差动比：前后差动的送布牙装置，送布牙的差动可调运动，有效的控制了织物同步效果，保证了面料左右片—致效果。

2. Differential: Inpossession of adjustable feed dog, effectively keeping the movement of fabric in synchronization, make the cloth in good condition.

3. 自动化：具有自动剪线、自动定位、自动抬压脚的电脑控制的三自动功能。

3. Automation: Autothread trimmer, auto orientation and auto presser foot lifter.

■ 用途   ∣ Usage

时装裤子、西裤裤脚、下摆、袖口、衫口、内衣、西装等暗缝用。

Fashion suits, skirts, trousers, pants, hemming cuffs, shirts, underwear, western suits, etc.

■ 类别 ∣ BOS-101D-QBD3前后差动自动背置驱动暗缝机（气动三自动）

BOS-101D-QBD3 Industrial differential blind stitch sewing machine with back-located drive motor(pneumatic auto thread trimmer, auto needle positioning and auto presser foot lifter).

BOS-101-BD前后差动普及型背置驱动暗缝

BOS-101-BD Industrial differential blind stitch sewing machine with back-located drive motor.

■ 规格 ∣ Specifications

缝制方式：单针链缝

Stitch spec. Singlethread chain stitch

缝制速度：最高1800针／分钟

Maximum speed : 1800rpm

送料量：3.2-8.5mm

Stitch length : 3.2-8.5 mm

跳缝装置：附有跳一针装置 (1:1, 2:1)

Skip device: Skip 1 needle device (1:1, 2:1)

采用机针：LWx6T 11# , 14#

Needle: LW×6T 11#, 14#

差分率：1.1-1.5

Differential rate: 1.1-1.5
